Sensor Time Controller

Sensor Time Controller
Sensor Time Controller
Send Inquiry
Product Code : VE-08
Brand Name : VIMMI ELECTRONICS
Product Specifications
  • Usage
  • Field Equipmen
Product Description

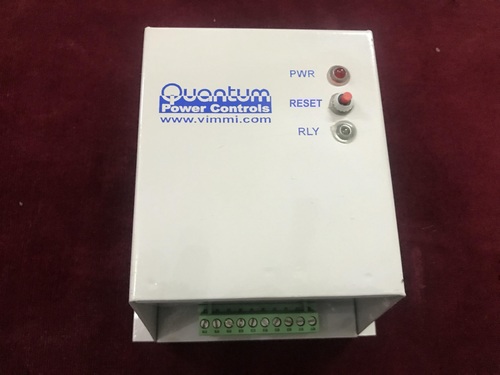

Sensor Controller



Sensor fitted on Thread Rolling Machine Sensor Controller

This Sensor controller is basically designed to be used in Thread Rolling Machine for Blank Floating
Inspection. However, it may be used in the, among other, following applications:

-Thread Rolling Machines

-

-Any other application requiring resettable one shot operation.

Because of its rugged design it withstands the severe environmental conditions of the Machine tool
industry.

It is compact, highly reliable, and low cost controller



Specifications:

Power supply: 110V or 220V or 415V AC ±10%, 50Hz
Input: Proximity Sensor or Photo Sensor or Simple Potential Free Contact.
Output: Relay Contact (5A / 250VAC)
Response Time: 1ms
Sensor Supply Output: 12V DC / 40mA
Current Consumption: 3VA
Operating Temperature: -20°C to 60°C
Enclosure: Sheet Steel
